PTFE Seated Stainless Steel Flanged Ball Valve API 607 Anti Static

1 Set

MOQ

negotiated

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Stainless Steel Ball Valve

Size: 4 Inch

Medium: Water,Air,Gas,Oil,Liquid

Body Material: F316

Anti-static Design: API 607

OEM: Ok

High Light:

PTFE Stainless Steel Flanged Ball Valve

Flanged Ball Valve API 607

PTFE Seated API Fire Safe Valve

Basic Infomation

Place of Origin: Zigong,Sichuan,China

Brand Name: VT

Certification: API 6D, API 607, ISO 9001

Payment & Shipping Terms

Packaging Details: Plywood Case

Payment Terms: L/C, T/T

Supply Ability: 10000 Sets Per Year

Gallery

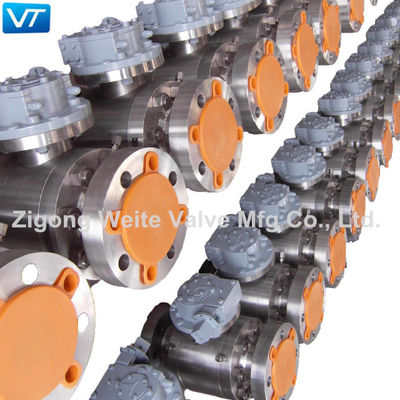

PTFE Seated Stainless Steel Flanged Ball Valve API 607 Anti Static

Product Description

F316 High Pressure Stainless Steel Ball Valve End Connection Flange

Product Description

The completely equal body cavity of the valve body provides the medium with little resistance and a straight flow path.

The ball valve main feature is its compact structure, easy operation and maintenance.

Stainless Steel Ball Valve Material Selection

Parts	Stainless Steel Series
Parts	CF8,CF3	CF8M,CF3M
Body	A351-CF8,CF3	A351-CF8M,CF3M
Packing Gland	A182-F304,F304L	A182-F316,F316L
Ball	A182-F304 F304L+HCR	A182-F316,F316L
Stem	A182-F304 F304	A182-F316,F316L
Seat Insert	PTFE (standard) /PPL(high temperature ) /PEEK/EPDM/VITON/DEVLON
Packing	PTFE / Graphite
Gasket	PTFE / Graphite
Bearing	PTFE

F316 Stainless Steel Ball Valve

PTFE Seated Stainless Steel Flanged Ball Valve API 607 Anti Static 0

About Weite

plant and machinery
General lathe, horizontal lathe, CNC lathe, boring machine, CNC drilling machine, sawing machine

PTFE Seated Stainless Steel Flanged Ball Valve API 607 Anti Static 2

PTFE Seated Stainless Steel Flanged Ball Valve API 607 Anti Static 3
