150LB CF8M Ball Valve Stainless Steel Flanged Ball Valve 16" Trunnion Mounted

1 Set

MOQ

negotiated

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Stainless Steel Trunnion Mounted Ball Valve

Material: CF8M

Pressure: 150LB

Size: 16''

OEM/ODM: Yes

Package: Plywood Case

High Light:

150LB CF8M Ball Valve Stainless Steel

Stainless Steel Flanged Ball Valve 16"

150LB trunnion type ball valve

Basic Infomation

Place of Origin: Sichuan, China

Brand Name: VT

Certification: API 6D, API 607,TS, ISO 9001,TS

Payment & Shipping Terms

Packaging Details: Plywood Case

Payment Terms: L/C, T/T

Supply Ability: 10000 Set Per Year

Gallery

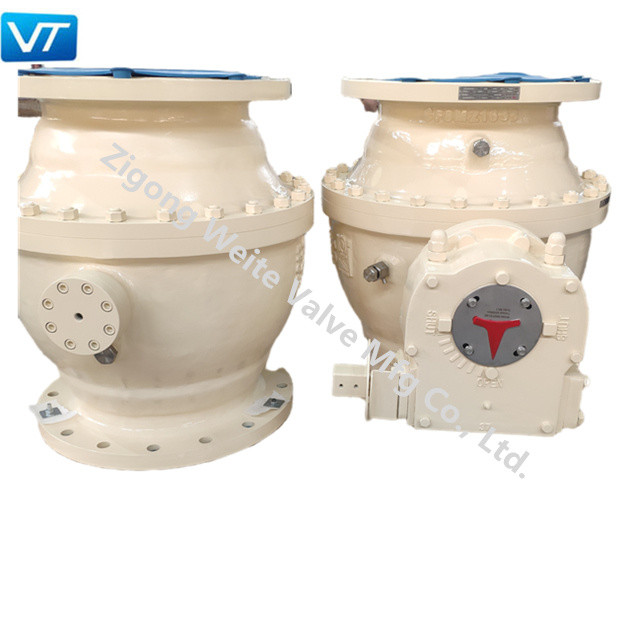

150LB CF8M Ball Valve Stainless Steel Flanged Ball Valve 16" Trunnion Mounted

Product Description

Body CF8M Stainless Steel Trunnion Mounted Ball Valve 16'' 150LB

Product Description

Stainless steel ball valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.

Trunnion Mounted Ball Valve Test Procedure

HYDROSTATIC SEAL TEST API 6D 10.3 and 10.4
Sequence	Area Pressure		Duration(min)		Description
SHELL TEST	A	1.5xPN	6″-10″	5	1. Valve in partial open. 2. Set the pressure to 150% PN. 3. Reduce the pressure to 50% PN. 4. Reset the pressure to 150% PN. 5. Hold the pressure for the duration of testing.
	B	1.5xPN	12″-18″	15
	C	1.5xPN	20″-60″	30
SEAT TEST	A	1.1xPN	5		Seat hydrostatic seal at A end towards body B
	B	Atmospheric
	C	Atmospheric
	A	Atmospheric	5		Seat hydro seal at C end towards body B
	B	Atmospheric
	C	1.1xPN
	A	1.1xPN	5		Seat hydro seal test for both A and C
	B	Atmospheric
	C	1.1xPN
AIR SEAL TEST API 6D 10.4
SEAT TEST	A	Atmospheric	5		Seat air seal test at A end towards body B
	B	Atmospheric
	C	80PSLG(5.5bar)
	A	80PSLG(5.5bar)	5		Seat air seal test at C end towards body B
	B	80PSLG(5.5bar)
	C	Atmospheric

Copmpany Profile

Weite is a collection of R & D, production, sales, design and manufacturing, international trade in one of the enterprises,

product quality is stable, strong technical strength, well received by customers.
