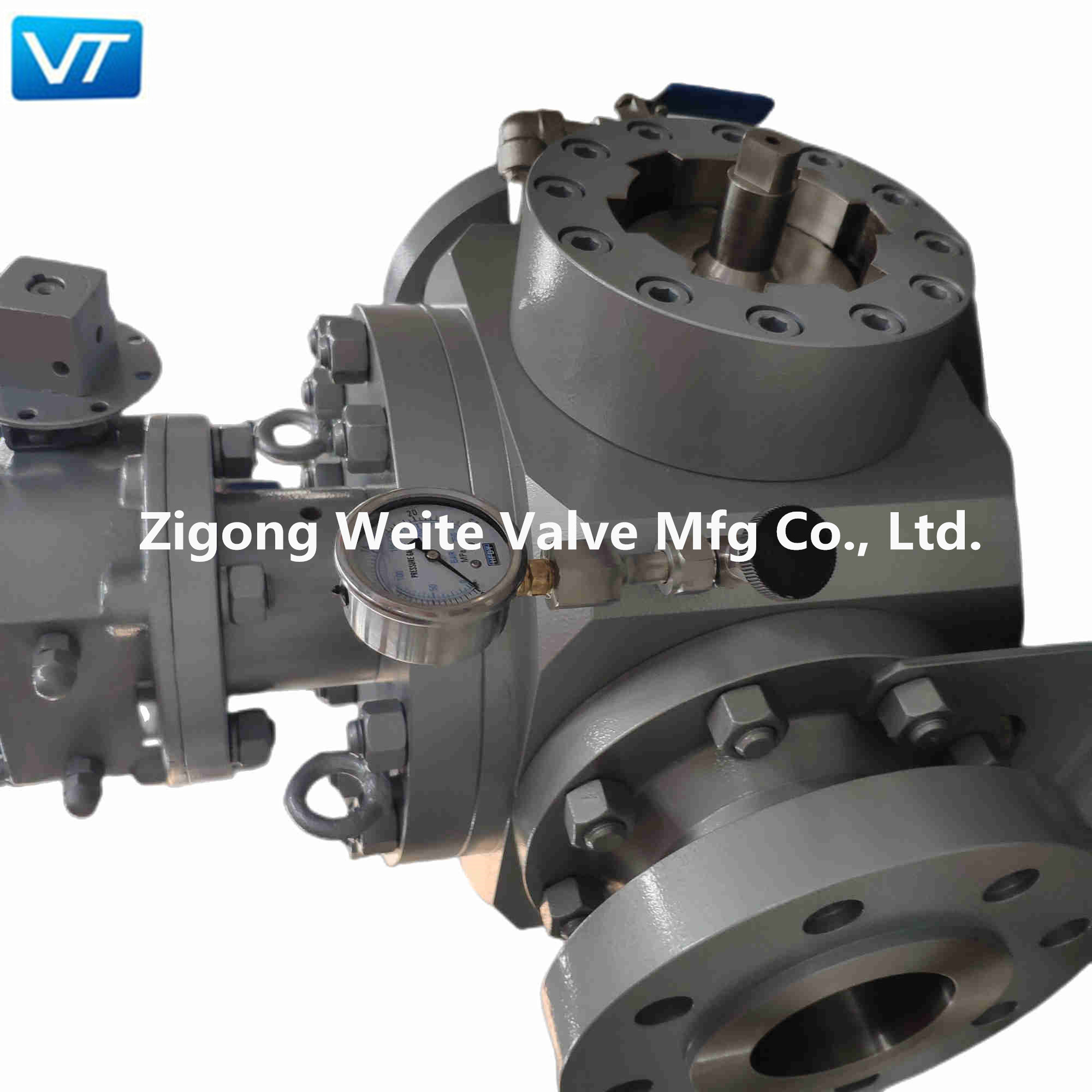

A105 Body Piggable Ball Valve 4'' 600LB ANSI B16.34 Pig Valves

4'' 600LB Pigging Launching Ball Valve Forged Steel Body A105

Pigging Ball Descripition

Pigging Ball Valve Type

1.Separating pig valve is mainly used for separating or sequencing transport medium,the area

of ball bore is approx.3% larger than the flow area of pipe.and the receiving valve has an additional

seal so as to prevent with certainty any mixing of the media to be separated after the pig has arrived.

2.Bypass pig valve is a pig valve with bypass,two elliptical flow channels have been provided in

the valve ball, and are in the perpendicular direction to the ball bore,the cross section of the

bypass is approx.25% of the pipe,this ensure delivery flow not be interrupted when receive or

launch pig (valve in closed position).

3.Cleaning pig valve is the standard pig valve,the area of ball bore which is approx.25% larger

than the flow area of pipe to keep the continuous flow during pigging.cleaning pig valve can be

use as the shut off valve.

Plant and Machinery

General lathe, horizontal lathe, CNC lathe, boring machine, CNC drilling machine, sawing machine

Hydraulic valve testing machine is used to test valves,such as Hydrostatic shell test,high preesure

seat test,low pressure seat test,low pressure seat test.
