Features

Specifications

Product Name: Trunnion Mounted Ball Valve

Body Material: LF2

Size: 16 Inch

Rating: 300LB

Actuator: Electric

Structure: Trunnion Mounted

High Light:

API 607 Electric Ball Valve

Electric Ball Valve 300LB LF2

300LB LF2 Large Ball Valve

Basic Infomation

Place of Origin: Sichuan,China

Brand Name: VT

Certification: API 6D, API 607,TS, ISO 9001,

Payment & Shipping Terms

Packaging Details: Plywood Case

Payment Terms: L/C, T/T

Supply Ability: 10000 Set Per Year

Gallery

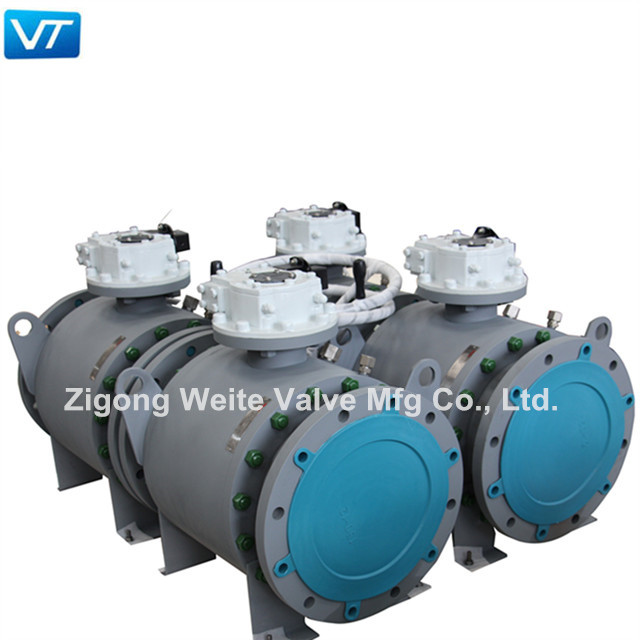

16 Inch API 607 Electric Ball Valve 300LB LF2 With Thrust Bearing

Product Description

Forged Steel Electric Actuator Trunnion Mounted Ball Valve Big Size

Description

The thrust bearing reduces the friction torque of the valve stem and enables the smooth and flexible operation

of the valve stem for a long time. The valve seat sealing performance is good, the structure is easy to seal,

and the sealing ability of forged steel ball valve increases with the increase of medium pressure.

Trunnion Mounted Ball Valve Test Procedure

HYDROSTATIC SEAL TEST API 6D 10.3 and 10.4
Sequence	Area Pressure		Duration(min)		Description
SHELL TEST	A	1.5xPN	6″-10″	5	1. Valve in partial open. 2. Set the pressure to 150% PN. 3. Reduce the pressure to 50% PN. 4. Reset the pressure to 150% PN. 5. Hold the pressure for the duration of testing.
	B	1.5xPN	12″-18″	15
	C	1.5xPN	20″-60″	30
SEAT TEST	A	1.1xPN	5		Seat hydrostatic seal at A end towards body B
	B	Atmospheric
	C	Atmospheric
	A	Atmospheric	5		Seat hydro seal at C end towards body B
	B	Atmospheric
	C	1.1xPN
	A	1.1xPN	5		Seat hydro seal test for both A and C
	B	Atmospheric
	C	1.1xPN
AIR SEAL TEST API 6D 10.4
SEAT TEST	A	Atmospheric	5		Seat air seal test at A end towards body B
	B	Atmospheric
	C	80PSLG(5.5bar)
	A	80PSLG(5.5bar)	5		Seat air seal test at C end towards body B
	B	80PSLG(5.5bar)
	C	Atmospheric

Weite Valve

We have a plant area of 15,400 m2 and is equipped with a technology research and development center.

Our company has passed API and TS certification.We mainly produces valves of ANSI, DIN, and other standards.

16 Inch API 607 Electric Ball Valve 300LB LF2 With Thrust Bearing 0

Factory Equipment

Shipping

FAQ:

Q: Why Choose Weite Valve?

A: 1. We are manufactory, we can provide cost effective products.

2. We have full experience in valve industrial, both our sales team and technical engineers can provide you

professional solution.
