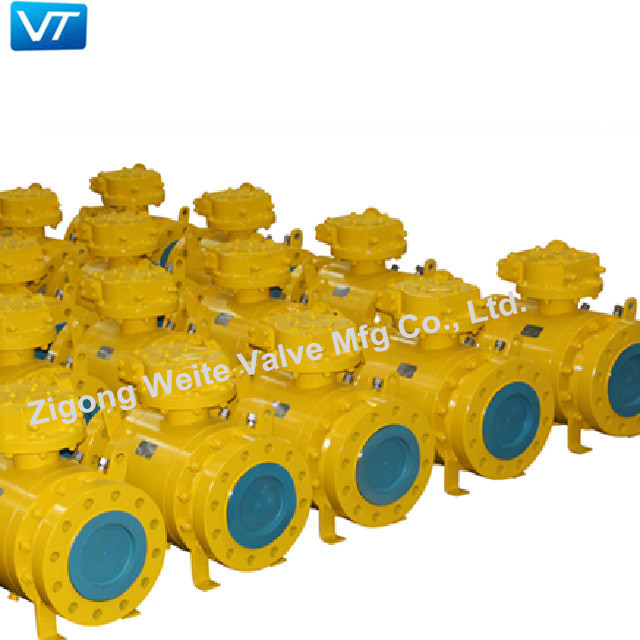

API 6D WCC Carbon Steel Pipeline Ball Valve 600LB ASME B 16.10
Product Description
The Trunnion Mounted ball valve welded body and top entry design in a wide range of carbon, stainless steel,
duplex stainless steel, alloy and other special materials.
Trunnion Mounted Ball Valve Content
| Design standard | API6D | ||
| Pressure-temperature Rating | ASME B16.34 | ||
| Face to Face Dimensions | ASME B16.10 | ||
| Flange Type and Dimensions | ASME B16.5 | ||
| Inspection and Test | API 6D, API598 | ||
Design Feature
Full or Reduced Bore
Upstream Seal Two-way Valve
Fire-Safe Design,Anti-Static
Stem and Seat Emergency Sealant Injection
Double Block and Bleed
Trunnion Mounted Ball Valve Pipe Size
Connection Pipe Outside DIA,(O.D)
| Size(in.) | In. | mm |
| 2 | 2.375 | 60.33 |
| 3 | 3.500 | 88.90 |
| 4 | 4.500 | 114.30 |
| 6 | 6.625 | 168.28 |
| 8 | 8.625 | 219.08 |
| 10 | 10.750 | 273.05 |
Company Profile
Zigong Weite Valve Mfg Co., Ltd. was established in 2007,we have a plant area of 15,400 m² and is equipped
with a technology research and development center.Our company has passed API and TS certification.
We mainly produces valves of ANSI, DIN, and other standards. Products are widely used in water, oil, natural gas,
petroleum, chemical, urban pipe network and other fields.
Workshop
General lathe, horizontal lathe, CNC lathe, boring machine, CNC drilling machine, sawing machine etc.
Hydraulic valve testing machine is used to test valves.
