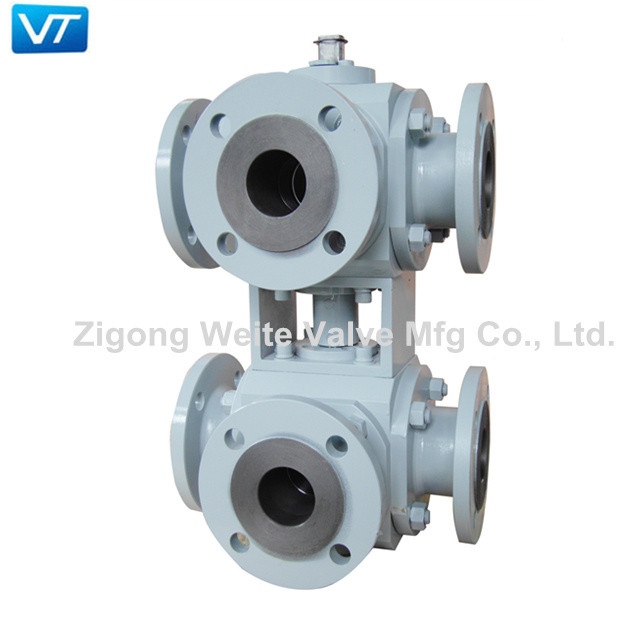

Two Sets Modular Type Four Way BALL Valve Is An Ideal Accessory Product For Filters
Product Description
In the power station system known as two-way water supply rotary valve (also known as air reversing valve in petrochemical system), suitable for liquid, gas, dust, slurry and solid particle medium circulation system. Four-way ball valve is adopted to replace the working principle of the manifold and valve group of the process, which simplifies procedures, facilitates operation, reduces costs, facilitates control and has good synchronization
Technical Parameters
| Design standard | API6D | ||
| Connection ends | flange | ||
| Operation | Manual,Pneumatic,Electric,Gas-liquid interaction etc. | ||
| Nominal diameter | 2” – 20” (DN 50-DN 500) | ||
| Pressure range | CLASS 150 – CLASS 900 (Mpa 1.6- Mpa 15.0) | ||
| Materials | carbon steel,stainless steel,20#steel ,Nickel alloy,Cobalt alloy | ||
| Inspection and Test | API 598 | ||
Feature
Four Way Ball Valve Integrated structure, less flange connection, high reliability,low piping stress.
Use anti-static and anti-off device design.
Can lock the switch position for preventing misoperation.
Designed light weight.
Application
Suitable for petroleum, chemical, pharmaceutical and other industries of a variety of material and liquid mixing and distribution, its applicable temperature, pressure and medium properties can be designed and manufactured according to different needs of users.
